With some friends, we're playing with the idea of using epicycles [1]
for a visualization. So far, so good and we have some beta code script
at [2]. We would like to put a pair of numbers inside the epicycle. So
the question is: How can we add a horizontal line wich divides the
epicycle in the middle and how can we put a number on each part?
[1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
[2] http://ws.stfx.eu/2S8R9YAGSJHO
Thanks,
Offray
19 May
19 May
2:08 p.m.
Hi Offray!
I am not sure to understand. How we can help you?
Alexandre
On May 17, 2015, at 3:35 PM, offray(a)riseup.net wrote:
Hi,
With some friends, we're playing with the idea of using epicycles [1] for a
visualization. So far, so good and we have some beta code script at [2]. We would like to
put a pair of numbers inside the epicycle. So the question is: How can we add a horizontal
line wich divides the epicycle in the middle and how can we put a number on each part?
[1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
[2] http://ws.stfx.eu/2S8R9YAGSJHO
Thanks,
Offray
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
21 May
21 May
2:24 p.m.
Hi Alexandre :),

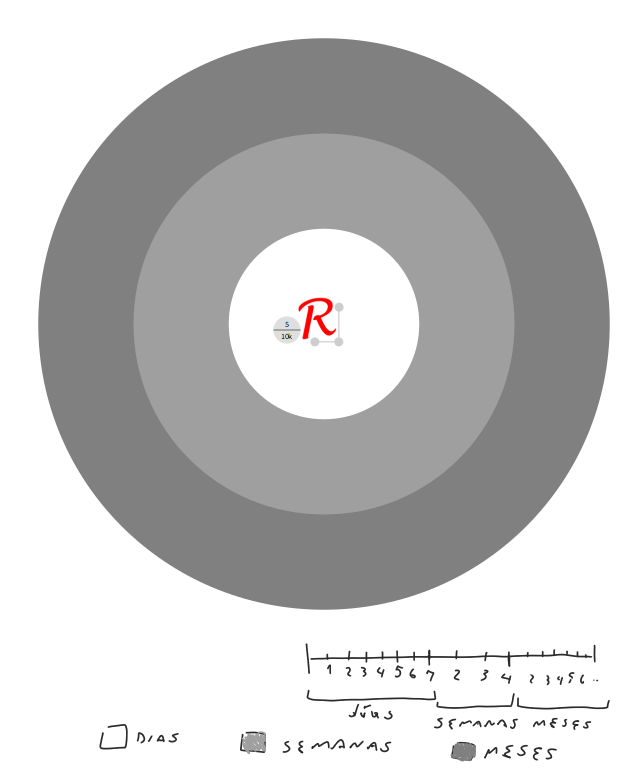

We're trying to create, programmaticaly in Roassal, something like the
attached image (which, by the way was created with the powerful DrGeo).
Forget about the points in red. I only want to create a circle with a
horizontal line in the middle and two text on each half. Eventually I
would like to change the contrast of the text with the background of the
circle's filling, but that could be a second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
Hi Offray!
I am not sure to understand. How we can help you?
Alexandre
On May 17, 2015, at 3:35 PM, offray(a)riseup.net
wrote:
Hi,
With some friends, we're playing with the idea of using epicycles [1] for a
visualization. So far, so good and we have some beta code script at [2]. We would like to
put a pair of numbers inside the epicycle. So the question is: How can we add a horizontal
line wich divides the epicycle in the middle and how can we put a number on each part?
[1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
[2] http://ws.stfx.eu/2S8R9YAGSJHO
Thanks,
Offray
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
24 May
24 May
12:06 p.m.
Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black; borderWidth: 0.014; color:
Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan to have? What are the
variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
On May 21, 2015, at 2:24 PM, Offray Vladimir Luna
Cárdenas <offray(a)riseup.net> wrote:
Hi Alexandre :),
We're trying to create, programmaticaly in Roassal, something like the attached image
(which, by the way was created with the powerful DrGeo). Forget about the points in red.
I only want to create a circle with a horizontal line in the middle and two text on each
half. Eventually I would like to change the contrast of the text with the background of
the circle's filling, but that could be a second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Hi Offray!
I am not sure to understand. How we can help you?
Alexandre
<epycicleNumbered.png>_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 17, 2015, at 3:35 PM, offray(a)riseup.net
wrote:
Hi,
With some friends, we're playing with the idea of using epicycles [1] for a
visualization. So far, so good and we have some beta code script at [2]. We would like to
put a pair of numbers inside the epicycle. So the question is: How can we add a horizontal
line wich divides the epicycle in the middle and how can we put a number on each part?
[1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
[2] http://ws.stfx.eu/2S8R9YAGSJHO
Thanks,
Offray
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
31 May
31 May
4:03 a.m.
Hi Alexandre,
Thanks for your answer and sorry for my late one. Only until today we
return to our workshops (Hackerspace is small and was kind of crowded
previous weekend).
I have tested your code and produced some minor changes at [1]
[1] http://pastebin.com/wmF2JUZn
I have even created a composite shape (just a circle with a line in the
middle) with this code:
~~~~~~~~~~~~~~~~~~~~~
MyClass>>epicycleAt: center withSize: diameter
"Creates a little epicycle with an horizontal line at the middle.
Future helper for silence maps."
| epicycle circle ex1 ex2 line "retweets reach" radious |
radious := diameter / 2.
epicycle := RTCompositeShape new.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: center.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
epicycle add: circle; add: line.
"retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center."
^ epicycle.
~~~~~~~~~~~~~~~
But I don't know how to add this composite shape to a view. All examples
in composite shapes are kind of difficult and require creating some kind
of collection and then using addAll on the extraction of the members of
that collection. So, for a better understand on how composite shapes
work, could you please help me on how to create a simple composite shape
(a circle with a horizontal line) and show it in a view?
About the variation point of the visual element, it should be mainly the
center where it is located, and eventually the color.
Thanks,
Offray
El 24/05/15 a las 05:06, Alexandre Bergel escribió:
Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black; borderWidth: 0.014; color:
Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan to have? What are
the variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
On May 21, 2015, at 2:24 PM, Offray Vladimir Luna
Cárdenas <offray(a)riseup.net> wrote:
Hi Alexandre :),
We're trying to create, programmaticaly in Roassal, something like the attached image
(which, by the way was created with the powerful DrGeo). Forget about the points in red.
I only want to create a circle with a horizontal line in the middle and two text on each
half. Eventually I would like to change the contrast of the text with the background of
the circle's filling, but that could be a second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
Hi Offray!
I am not sure to understand. How we can help you?
Alexandre
<epycicleNumbered.png>_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 17, 2015, at 3:35 PM, offray(a)riseup.net
wrote:
Hi,
With some friends, we're playing with the idea of using epicycles [1] for a
visualization. So far, so good and we have some beta code script at [2]. We would like to
put a pair of numbers inside the epicycle. So the question is: How can we add a horizontal
line wich divides the epicycle in the middle and how can we put a number on each part?
[1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
[2] http://ws.stfx.eu/2S8R9YAGSJHO
Thanks,
Offray
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
3 Jun
3 Jun
1:07 a.m.
Hi Offray,
CompositeShape are not the right thing to use here.
I have just created a new class Epicycle, subclass of Object.
I have added the method on that class:
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
epicycleAt: diameter inView: v
| circle ex1 ex2 line retweets reach radious origin background els |
background := (RTBox new color: Color transparent) element.
v add: background.
origin := (0@0).
radious := diameter / 2.
circle := (RTEllipse new size: diameter; borderColor: Color black; color: Color
transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: origin.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center.
els := RTGroup with: retweets with: reach with: circle with: ex1 with: ex2.
RTNest new on: background nest: els.
^ background
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
I am then able to write:
-=-=-=-=-=-=-=-=-=-=-=-=
v := RTView new.
e1 := Epicycle new epicycleAt: 50 inView: v.
e2 := Epicycle new epicycleAt: 100 inView: v.
e1 @ RTDraggable.
e2 @ RTDraggable.
e2 translateBy: 10 @ 100.
v
-=-=-=-=-=-=-=-=-=-=-=-=
Let me know how it goes.
Alexandre
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
On May 30, 2015, at 11:03 PM, Offray Vladimir Luna
Cárdenas <offray(a)riseup.net> wrote:
Hi Alexandre,
Thanks for your answer and sorry for my late one. Only until today we return to our
workshops (Hackerspace is small and was kind of crowded previous weekend).
I have tested your code and produced some minor changes at [1]
[1] http://pastebin.com/wmF2JUZn
I have even created a composite shape (just a circle with a line in the middle) with this
code:
~~~~~~~~~~~~~~~~~~~~~
MyClass>>epicycleAt: center withSize: diameter
"Creates a little epicycle with an horizontal line at the middle. Future helper for
silence maps."
| epicycle circle ex1 ex2 line "retweets reach" radious |
radious := diameter / 2.
epicycle := RTCompositeShape new.
circle := (RTEllipse new size: diameter; borderColor: Color black; color: Color
transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: center.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
epicycle add: circle; add: line.
"retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center."
^ epicycle.
~~~~~~~~~~~~~~~
But I don't know how to add this composite shape to a view. All examples in composite
shapes are kind of difficult and require creating some kind of collection and then using
addAll on the extraction of the members of that collection. So, for a better understand on
how composite shapes work, could you please help me on how to create a simple composite
shape (a circle with a horizontal line) and show it in a view?
About the variation point of the visual element, it should be mainly the center where it
is located, and eventually the color.
Thanks,
Offray
El 24/05/15 a las 05:06, Alexandre Bergel escribió:
Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black; borderWidth: 0.014; color:
Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan to have? What are
the variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 21, 2015, at 2:24 PM, Offray Vladimir Luna
Cárdenas <offray(a)riseup.net> wrote:
Hi Alexandre :),
We're trying to create, programmaticaly in Roassal, something like the attached image
(which, by the way was created with the powerful DrGeo). Forget about the points in red.
I only want to create a circle with a horizontal line in the middle and two text on each
half. Eventually I would like to change the contrast of the text with the background of
the circle's filling, but that could be a second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
Hi Offray!
I am not sure to understand. How we can help you?
Alexandre
> On May 17, 2015, at 3:35 PM, offray(a)riseup.net wrote:
>
> Hi,
>
> With some friends, we're playing with the idea of using epicycles [1] for a
visualization. So far, so good and we have some beta code script at [2]. We would like to
put a pair of numbers inside the epicycle. So the question is: How can we add a horizontal
line wich divides the epicycle in the middle and how can we put a number on each part?
>
>
> [1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
> [2] http://ws.stfx.eu/2S8R9YAGSJHO
>
> Thanks,
>
> Offray
> _______________________________________________
> Moose-dev mailing list
> Moose-dev(a)iam.unibe.ch
> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
<epycicleNumbered.png>_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
6:54 p.m.
Thanks Alexandre,
We will test your approach in our workshop this Saturday:
http://hackbo.co/hackboweb/eventos/evento/386
Cheers,
Offray
On 02/06/15 18:07, Alexandre Bergel wrote:
Hi Offray,
CompositeShape are not the right thing to use here.
I have just created a new class Epicycle, subclass of Object.
I have added the method on that class:
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
epicycleAt: diameter inView: v
| circle ex1 ex2 line retweets reach radious origin background els |
background := (RTBox new color: Color transparent) element.
v add: background.
origin := (0@0).
radious := diameter / 2.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: origin.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center.
els := RTGroup with: retweets with: reach with: circle with: ex1 with:
ex2.
RTNest new on: background nest: els.
^ background
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
I am then able to write:
-=-=-=-=-=-=-=-=-=-=-=-=
v := RTView new.
e1 := Epicycle new epicycleAt: 50 inView: v.
e2 := Epicycle new epicycleAt: 100 inView: v.
e1 @ RTDraggable.
e2 @ RTDraggable.
e2 translateBy: 10 @ 100.
v
-=-=-=-=-=-=-=-=-=-=-=-=
Let me know how it goes.
Alexandre
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
On May 30, 2015, at 11:03 PM, Offray Vladimir
Luna Cárdenas
<offray(a)riseup.net <mailto:offray@riseup.net>> wrote:
Hi Alexandre,
Thanks for your answer and sorry for my late one. Only until today we
return to our workshops (Hackerspace is small and was kind of crowded
previous weekend).
I have tested your code and produced some minor changes at [1]
[1] http://pastebin.com/wmF2JUZn
I have even created a composite shape (just a circle with a line in
the middle) with this code:
~~~~~~~~~~~~~~~~~~~~~
MyClass>>epicycleAt: center withSize: diameter
"Creates a little epicycle with an horizontal line at the middle.
Future helper for silence maps."
| epicycle circle ex1 ex2 line "retweets reach" radious |
radious := diameter / 2.
epicycle := RTCompositeShape new.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: center.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
epicycle add: circle; add: line.
"retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center."
^ epicycle.
~~~~~~~~~~~~~~~
But I don't know how to add this composite shape to a view. All
examples in composite shapes are kind of difficult and require
creating some kind of collection and then using addAll on the
extraction of the members of that collection. So, for a better
understand on how composite shapes work, could you please help me on
how to create a simple composite shape (a circle with a horizontal
line) and show it in a view?
About the variation point of the visual element, it should be mainly
the center where it is located, and eventually the color.
Thanks,
Offray
El 24/05/15 a las 05:06, Alexandre Bergel escribió:
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black;
borderWidth: 0.014; color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan
to have? What are the variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 21, 2015, at 2:24 PM, Offray Vladimir Luna
Cárdenas
<offray(a)riseup.net <mailto:offray@riseup.net>> wrote:
Hi Alexandre :),
We're trying to create, programmaticaly in Roassal, something like
the attached image (which, by the way was created with the powerful
DrGeo). Forget about the points in red. I only want to create a
circle with a horizontal line in the middle and two text on each
half. Eventually I would like to change the contrast of the text
with the background of the circle's filling, but that could be a
second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
> Hi Offray!
>
> I am not sure to understand. How we can help you?
>
> Alexandre
>
>
>> On May 17, 2015, at 3:35 PM, offray(a)riseup.net
>> <mailto:offray@riseup.net> wrote:
>>
>> Hi,
>>
>> With some friends, we're playing with the idea of using epicycles
>> [1] for a visualization. So far, so good and we have some beta
>> code script at [2]. We would like to put a pair of numbers inside
>> the epicycle. So the question is: How can we add a horizontal
>> line wich divides the epicycle in the middle and how can we put a
>> number on each part?
>>
>>
>> [1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
>> [2] http://ws.stfx.eu/2S8R9YAGSJHO
>>
>> Thanks,
>>
>> Offray
>> _______________________________________________
>> Moose-dev mailing list
>> Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
>> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
>
<epycicleNumbered.png>_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
5 Jun
5 Jun
3:30 p.m.
Hi Alexandre :),
Thanks! Now is working pretty well. My modified method was:
~~~~~~~~~
myClass>>labeledCircleSized: diameter upLabel: label1 downLabel: label2
inView: v
| circle ex1 ex2 line retweets reach radious origin background els |
background := (RTBox new color: Color transparent) element.
v add: background.
origin := (0@0).
radious := diameter / 2.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: origin.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
retweets := (RTLabel text: label1) element.
reach := (RTLabel text: label2) element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center.
els := RTGroup with: retweets with: reach with: circle with: ex1 with: ex2.
RTNest new on: background nest: els.
^ background
~~~~~~~~~
Some minor questions left:
- Why composite shape was not the right thing to use and how can a
newbie could differenciate which strategy to use?
- A sytle question "labeledCircleSized: upLabel: downLabel: at:" seems
descriptive to me, but I don't know if has the proper style for a method
name. I can read Smalltalk with Style to look at it, now that I know
more about the environment, but advice of seasoned smalltalkers would
help a lot in getting proper style also.
Cheers,
Offray
On 02/06/15 18:07, Alexandre Bergel wrote:
Hi Offray,
CompositeShape are not the right thing to use here.
I have just created a new class Epicycle, subclass of Object.
I have added the method on that class:
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
epicycleAt: diameter inView: v
| circle ex1 ex2 line retweets reach radious origin background els |
background := (RTBox new color: Color transparent) element.
v add: background.
origin := (0@0).
radious := diameter / 2.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: origin.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center.
els := RTGroup with: retweets with: reach with: circle with: ex1 with:
ex2.
RTNest new on: background nest: els.
^ background
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
I am then able to write:
-=-=-=-=-=-=-=-=-=-=-=-=
v := RTView new.
e1 := Epicycle new epicycleAt: 50 inView: v.
e2 := Epicycle new epicycleAt: 100 inView: v.
e1 @ RTDraggable.
e2 @ RTDraggable.
e2 translateBy: 10 @ 100.
v
-=-=-=-=-=-=-=-=-=-=-=-=
Let me know how it goes.
Alexandre
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
On May 30, 2015, at 11:03 PM, Offray Vladimir
Luna Cárdenas
<offray(a)riseup.net <mailto:offray@riseup.net>> wrote:
Hi Alexandre,
Thanks for your answer and sorry for my late one. Only until today we
return to our workshops (Hackerspace is small and was kind of crowded
previous weekend).
I have tested your code and produced some minor changes at [1]
[1] http://pastebin.com/wmF2JUZn
I have even created a composite shape (just a circle with a line in
the middle) with this code:
~~~~~~~~~~~~~~~~~~~~~
MyClass>>epicycleAt: center withSize: diameter
"Creates a little epicycle with an horizontal line at the middle.
Future helper for silence maps."
| epicycle circle ex1 ex2 line "retweets reach" radious |
radious := diameter / 2.
epicycle := RTCompositeShape new.
circle := (RTEllipse new size: diameter; borderColor: Color black;
color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: center.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
epicycle add: circle; add: line.
"retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center."
^ epicycle.
~~~~~~~~~~~~~~~
But I don't know how to add this composite shape to a view. All
examples in composite shapes are kind of difficult and require
creating some kind of collection and then using addAll on the
extraction of the members of that collection. So, for a better
understand on how composite shapes work, could you please help me on
how to create a simple composite shape (a circle with a horizontal
line) and show it in a view?
About the variation point of the visual element, it should be mainly
the center where it is located, and eventually the color.
Thanks,
Offray
El 24/05/15 a las 05:06, Alexandre Bergel escribió:
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black;
borderWidth: 0.014; color: Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan
to have? What are the variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 21, 2015, at 2:24 PM, Offray Vladimir Luna
Cárdenas
<offray(a)riseup.net <mailto:offray@riseup.net>> wrote:
Hi Alexandre :),
We're trying to create, programmaticaly in Roassal, something like
the attached image (which, by the way was created with the powerful
DrGeo). Forget about the points in red. I only want to create a
circle with a horizontal line in the middle and two text on each
half. Eventually I would like to change the contrast of the text
with the background of the circle's filling, but that could be a
second exercise.
Cheers,
Offray
El 19/05/15 a las 07:08, Alexandre Bergel escribió:
> Hi Offray!
>
> I am not sure to understand. How we can help you?
>
> Alexandre
>
>
>> On May 17, 2015, at 3:35 PM, offray(a)riseup.net
>> <mailto:offray@riseup.net> wrote:
>>
>> Hi,
>>
>> With some friends, we're playing with the idea of using epicycles
>> [1] for a visualization. So far, so good and we have some beta
>> code script at [2]. We would like to put a pair of numbers inside
>> the epicycle. So the question is: How can we add a horizontal
>> line wich divides the epicycle in the middle and how can we put a
>> number on each part?
>>
>>
>> [1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
>> [2] http://ws.stfx.eu/2S8R9YAGSJHO
>>
>> Thanks,
>>
>> Offray
>> _______________________________________________
>> Moose-dev mailing list
>> Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
>> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
>
<epycicleNumbered.png>_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
6 Jun
6 Jun
12:03 a.m.
Thanks! Now is working pretty well. My modified method
was:
Excellent!
Some minor questions left:
- Why composite shape was not the right thing to use and how can a newbie could
differenciate which strategy to use?
I think that the problem is the lack of good documentation. With all this time, I am
convinced that composite shapes are good at naming elements. E.g., putting a name on top
of circle or a square.
As soon as you want to glue two or more object
- A sytle question "labeledCircleSized: upLabel:
downLabel: at:" seems descriptive to me, but I don't know if has the proper style
for a method name. I can read Smalltalk with Style to look at it, now that I know more
about the environment, but advice of seasoned smalltalkers would help a lot in getting
proper style also.
You may want to use a factory object to configure its creation :-)
Will you be at Esug by the way? We will have a camp about Roassal.
Alexandre
On 02/06/15 18:07, Alexandre Bergel wrote:
Hi Offray,
CompositeShape are not the right thing to use here.
I have just created a new class Epicycle, subclass of Object.
I have added the method on that class:
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
epicycleAt: diameter inView: v
| circle ex1 ex2 line retweets reach radious origin background els |
background := (RTBox new color: Color transparent) element.
v add: background.
origin := (0@0).
radious := diameter / 2.
circle := (RTEllipse new size: diameter; borderColor: Color black; color: Color
transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: origin.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center.
els := RTGroup with: retweets with: reach with: circle with: ex1 with: ex2.
RTNest new on: background nest: els.
^ background
-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=-=
I am then able to write:
-=-=-=-=-=-=-=-=-=-=-=-=
v := RTView new.
e1 := Epicycle new epicycleAt: 50 inView: v.
e2 := Epicycle new epicycleAt: 100 inView: v.
e1 @ RTDraggable.
e2 @ RTDraggable.
e2 translateBy: 10 @ 100.
v
-=-=-=-=-=-=-=-=-=-=-=-=
<Mail Attachment.png>
Let me know how it goes.
Alexandre
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu <http://www.bergel.eu/>
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev On May 30, 2015, at 11:03 PM, Offray Vladimir
Luna Cárdenas <offray(a)riseup.net <mailto:offray@riseup.net>> wrote:
Hi Alexandre,
Thanks for your answer and sorry for my late one. Only until today we return to our
workshops (Hackerspace is small and was kind of crowded previous weekend).
I have tested your code and produced some minor changes at [1]
[1] http://pastebin.com/wmF2JUZn <http://pastebin.com/wmF2JUZn>
I have even created a composite shape (just a circle with a line in the middle) with this
code:
~~~~~~~~~~~~~~~~~~~~~
MyClass>>epicycleAt: center withSize: diameter
"Creates a little epicycle with an horizontal line at the middle. Future helper for
silence maps."
| epicycle circle ex1 ex2 line "retweets reach" radious |
radious := diameter / 2.
epicycle := RTCompositeShape new.
circle := (RTEllipse new size: diameter; borderColor: Color black; color: Color
transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
circle translateTo: center.
ex1 translateTo: ((radious negated @ 0) + circle center).
ex2 translateTo: (radious @ 0) + circle center.
line := (RTLine new; color: Color black) edgeFrom: ex1 to: ex2.
epicycle add: circle; add: line.
"retweets := (RTLabel text: 5) element.
reach := (RTLabel text: '3.1k') element.
v add: retweets; add: reach.
retweets translateTo: (0 @ -12) + circle center.
reach translateTo: (0 @ 12) + circle center."
^ epicycle.
~~~~~~~~~~~~~~~
But I don't know how to add this composite shape to a view. All examples in composite
shapes are kind of difficult and require creating some kind of collection and then using
addAll on the extraction of the members of that collection. So, for a better understand on
how composite shapes work, could you please help me on how to create a simple composite
shape (a circle with a horizontal line) and show it in a view?
About the variation point of the visual element, it should be mainly the center where it
is located, and eventually the color.
Thanks,
Offray
El 24/05/15 a las 05:06, Alexandre Bergel escribió:
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
<https://www.iam.unibe.ch/mailman/listinfo/moose-dev> Hi!
Well, it all depends what the circle actually mean.
You can simply draw it like that:
v := RTView new.
circle := (RTEllipse new size: 80; borderColor: Color black; borderWidth: 0.014; color:
Color transparent) element.
ex1 := RTBox element.
ex2 := RTBox element.
ex1 translateTo: -40 @ 0.
ex2 translateTo: 40 @ 0.
line := (RTLine new width: 2; color: Color black) edgeFrom: ex1 to: ex2.
v add: circle; add: line.
lbl1 := (RTLabel text: 5) element.
lbl2 := (RTLabel text: '3.1k') element.
v add: lbl1; add: lbl2.
lbl1 translateTo: 0 @ -20.
lbl2 translateTo: 0 @ 20.
v
But I am sure this is not what you want. How many circle do you plan to have? What are
the variation point of a visual element? Color? Size?
A proper implementation will likely be based on a dedicated builder.
Cheers,
Alexandre
> On May 21, 2015, at 2:24 PM, Offray Vladimir Luna Cárdenas <offray(a)riseup.net
<mailto:offray@riseup.net>> wrote:
>
> Hi Alexandre :),
>
> We're trying to create, programmaticaly in Roassal, something like the attached
image (which, by the way was created with the powerful DrGeo). Forget about the points in
red. I only want to create a circle with a horizontal line in the middle and two text on
each half. Eventually I would like to change the contrast of the text with the background
of the circle's filling, but that could be a second exercise.
>
> Cheers,
>
> Offray
>
> El 19/05/15 a las 07:08, Alexandre Bergel escribió:
>> Hi Offray!
>>
>> I am not sure to understand. How we can help you?
>>
>> Alexandre
>>
>>
>>> On May 17, 2015, at 3:35 PM, offray(a)riseup.net
<mailto:offray@riseup.net> wrote:
>>>
>>> Hi,
>>>
>>> With some friends, we're playing with the idea of using epicycles [1] for
a visualization. So far, so good and we have some beta code script at [2]. We would like
to put a pair of numbers inside the epicycle. So the question is: How can we add a
horizontal line wich divides the epicycle in the middle and how can we put a number on
each part?
>>>
>>>
>>> [1] http://en.wikipedia.org/wiki/Deferent_and_epicycle
<http://en.wikipedia.org/wiki/Deferent_and_epicycle>
>>> [2] http://ws.stfx.eu/2S8R9YAGSJHO <http://ws.stfx.eu/2S8R9YAGSJHO>
>>>
>>> Thanks,
>>>
>>> Offray
>>> _______________________________________________
>>> Moose-dev mailing list
>>> Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
>>> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
<https://www.iam.unibe.ch/mailman/listinfo/moose-dev>
>>
>
> <epycicleNumbered.png>_______________________________________________
> Moose-dev mailing list
> Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
> https://www.iam.unibe.ch/mailman/listinfo/moose-dev
<https://www.iam.unibe.ch/mailman/listinfo/moose-dev>
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch <mailto:Moose-dev@iam.unibe.ch>
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
<https://www.iam.unibe.ch/mailman/listinfo/moose-dev>
4:58 a.m.
Hi,
On 05/06/15 17:03, Alexandre Bergel wrote:
Umm... I still don't get it. Seems that the proper way to group objects
together is not by Composite shapes but with RTGroup and RTNest.
Hopefully with the time I will. Anyway I hope this question can help to
improve documentation.
Now, with some tweaks on the view, I'm capable of getting something like
this:
Which is pretty close to what we originally planed. I would like to play
with some color saturation on the epicycle, which could imply, at some
point changing the color of the font of the numbers on it, changing from
black to other colors. I also presume that would be nice to have some
kind of scale in the graph. Distance between epycicle and nucleus avatar
is measured in a logarithmic inspired scale, first days (green), then
weeks (orange), then months (red) and finally years (black).
So, two more questions:
- How can I select the zoom out level of the view, making all object to
fit in that view automatically (the screenshot was obtained by manually
zooming out and arranging the visual objects).
- How can I get this kind of "logarithmic" scale a rule in the bottom of
the view.
I remember reading something about factory of objects in the book Squeak
Learn programming with Robots, but that was the name for a class...
still I don't get it :-/
- Why composite shape was not the right thing to use and how can a
newbie could differenciate which strategy to use?
I think that the problem is the lack of good documentation. With all
this time, I am convinced that composite shapes are good at naming
elements. E.g., putting a name on top of circle or a square.
As soon as you want to glue two or more object
- A sytle
question "labeledCircleSized: upLabel: downLabel: at:"
seems descriptive to me, but I don't know if has the proper style for
a method name. I can read Smalltalk with Style to look at it, now
that I know more about the environment, but advice of seasoned
smalltalkers would help a lot in getting proper style also.
You may want to use a factory object to configure its creation :-)
Will you be at Esug by the way? We will have a camp about Roassal.
Unfortunately I will not (long distance between Colombia and Europe),
but hopefully I will find the way to visit Chile :-).
Cheers,
Offray
7 Jun
7 Jun
1:50 p.m.
Umm... I still don't get it. Seems that the proper
way to group objects together is not by Composite shapes but with RTGroup and RTNest.
Hopefully with the time I will. Anyway I hope this question can help to improve
documentation.
Yes it does. From what I have seen, composite shapes are well adapted for naming elements.
Which is pretty close to what we originally planed. I
would like to play with some color saturation on the epicycle, which could imply, at some
point changing the color of the font of the numbers on it, changing from black to other
colors. I also presume that would be nice to have some kind of scale in the graph.
Distance between epycicle and nucleus avatar is measured in a logarithmic inspired scale,
first days (green), then weeks (orange), then months (red) and finally years (black).
Excellent!
So, two more questions:
- How can I select the zoom out level of the view, making all object to fit in that view
automatically (the screenshot was obtained by manually zooming out and arranging the
visual objects).
you simply have to send #focusOnCenterScaled to the Trachel canvas. Consider the following
example (the most important line is the menu):
-=-=-=-=-=-=-=-=-=-=-=-=
| b |
b := RTMondrian new.
b shape circle
size: 8;
if: [ :c | '*Line*' match: c name ] fillColor: Color red.
b nodes: TRShape withAllSubclasses, RTShape withAllSubclasses.
b shape line.
b edges
connectFrom: #superclass.
b shape bezierLineFollowing: #superclass; color: (Color blue alpha: 0.2).
b edges
objects: TRShape withAllSubclasses, RTShape withAllSubclasses;
notUseInLayout;
connectToAll: #dependentClasses.
b layout tree.
b build.
“VVVVV important line VVVVVV"
b view addMenu: 'focus' callback: [ b view canvas focusOnCenterScaled. b view
signalUpdate ].
^ b
-=-=-=-=-=-=-=-=-=-=-=-=
- How can I get this kind of "logarithmic"
scale a rule in the bottom of the view.
I do not understand. What such a scale is supposed to do?
- A sytle
question "labeledCircleSized: upLabel: downLabel: at:" seems descriptive to me,
but I don't know if has the proper style for a method name. I can read Smalltalk with
Style to look at it, now that I know more about the environment, but advice of seasoned
smalltalkers would help a lot in getting proper style also.
You may want to use a factory object to configure its creation :-) From Slide 16 until Slide 24 in:
https://www.dropbox.com/s/w7r17a5xlahj6oa/14-MoreDesignPatterns.pdf?dl=0
Cheers,
Alexandre
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
12 Jun
12 Jun
1:53 a.m.
Hi :),
On 07/06/15 06:50, Alexandre Bergel wrote:
Ok. I will keep all you posted on our advances.
Thanks. Tested is working pretty fine.

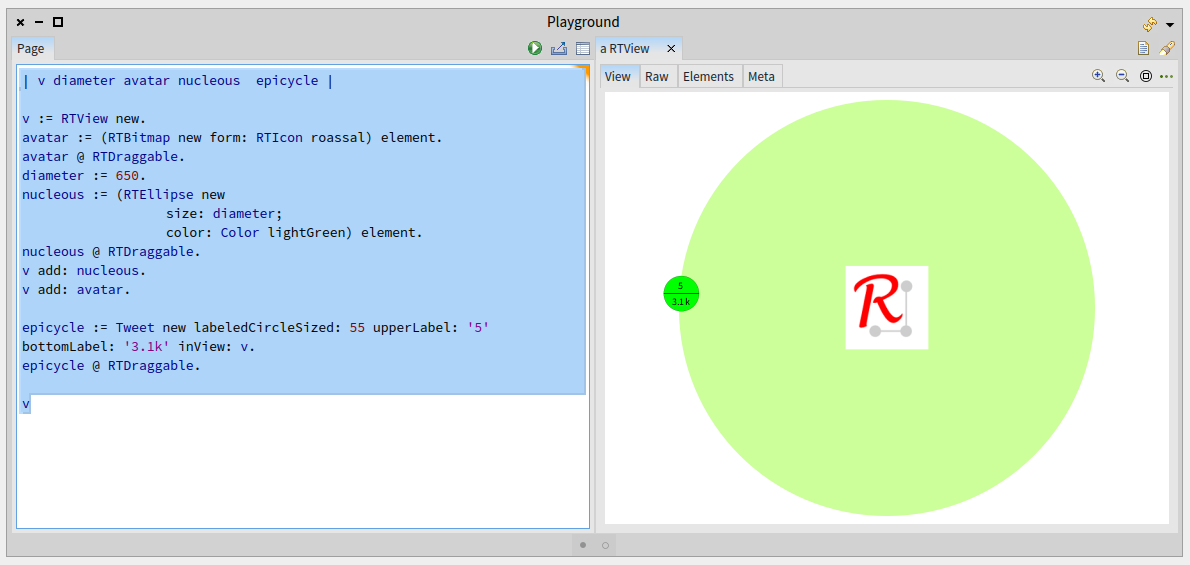

My bad. Again a picture is worth a thousand of words :-). So I have send
you some pictures of what I mean:
- Graphic 1:
- Graphic 2 (left) and Graphic 3 (right):

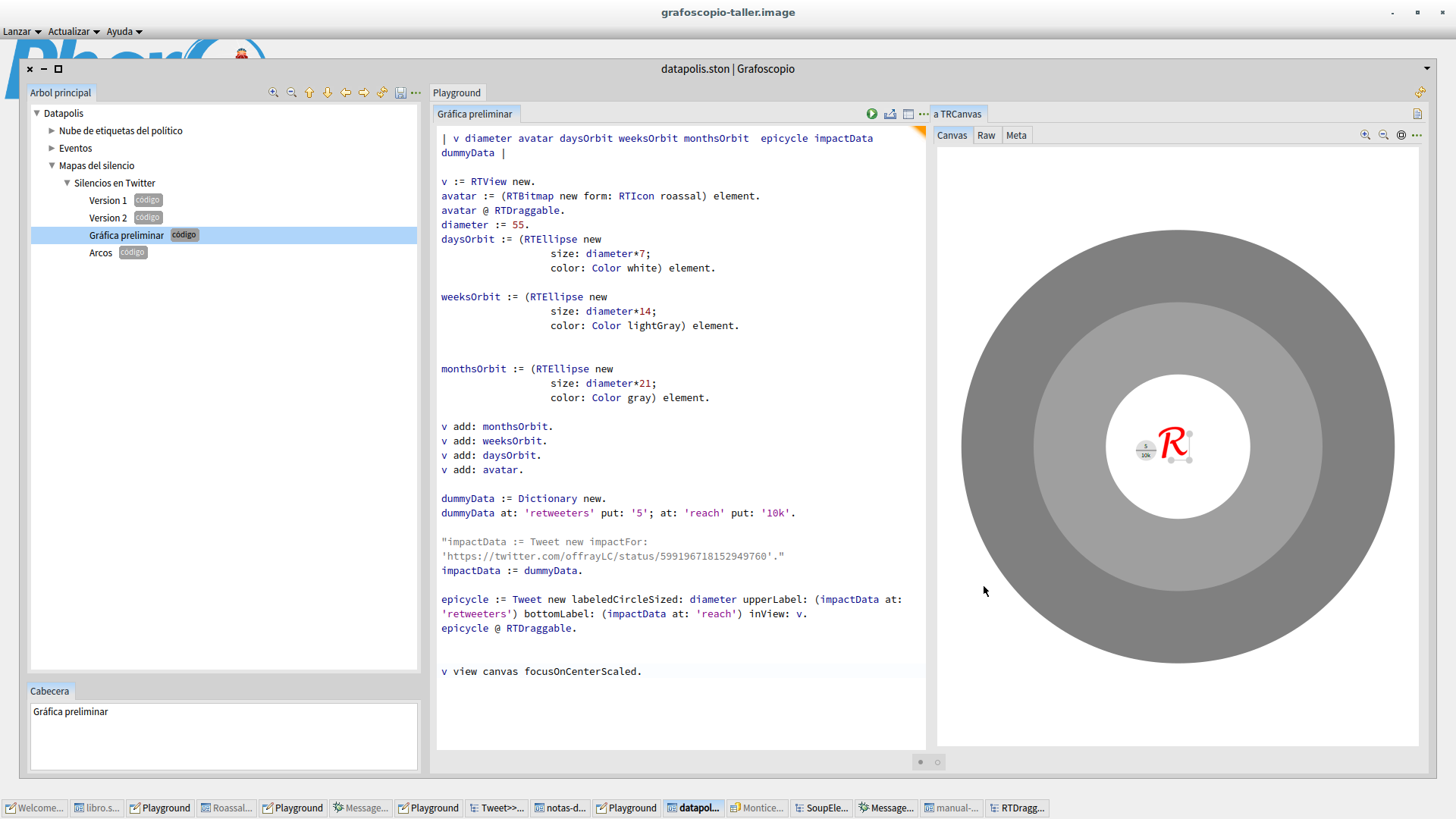

The graphic 1 is just my grafoscopio notebook where I'm testing your
help notes. The code to produce the graphic at the right most panel is
published at: [1] http://ws.stfx.eu/4AZSKR2NH7AO. The graphic 2 is an
exportation of that graphic as a png edited by hand with the things I
would like to add. Some labeled boxes with color conventions (white:
days, light gray: weeks, gray: months) and this custom ruler scale at
the bottom of the graphic. I have read the visualization composition
chapter but If I remember well, you shared with us some other way to put
conventions on a graph, which seem easier. How can I add the custom
ruler and labeled convention boxes?
Another possibility is not use this custom scale ruler and instead we
will use some kind of arcs, but I would like to test different
approaches to choose from. By the way testing the arcs approach (code at
[2] http://ws.stfx.eu/EGZ9ZYULOR0 and graphic 3) I start to wonder if
there is not a better way by having overlapping ellipsis with
transparent background and custom colored borders. Is this possible?
Another strange thing happen when I was making this test: The circular
tree layout examples started to work funny, with a background being all
gray or all black. See video example at: [3]
[3] https://archive.org/details/funny-roassal.mp4
I remember reading something about
factory of objects in the book Squeak Learn programming with Robots, but that was the name
for a class... still I don't get it :-/
From Slide 16 until Slide 24 in:
https://www.dropbox.com/s/w7r17a5xlahj6oa/14-MoreDesignPatterns.pdf?dl=0
Ohh ok! Bookmarked. Surely in the future, the Dataviz package will
contain some "Visual helpers" with this kind of custom forms, like the
labeled circle, which can be used for several objects in their custom
visualizations. I was wondering if the name "labeledCircleSized:
upperLabel: bottomLabel: at:" was a good one and follows the
Smalltalk-ish good style rules.
Which is pretty close to what we originally
planed. I would like to play with some color saturation on the epicycle, which could
imply, at some point changing the color of the font of the numbers on it, changing from
black to other colors. I also presume that would be nice to have some kind of scale in the
graph. Distance between epycicle and nucleus avatar is measured in a logarithmic inspired
scale, first days (green), then weeks (orange), then months (red) and finally years
(black).
Excellent! So, two more
questions:
- How can I select the zoom out level of the view, making all object to fit in that view
automatically (the screenshot was obtained by manually zooming out and arranging the
visual objects).
you simply have to send #focusOnCenterScaled to the Trachel
canvas. Consider the following example (the most important line is the menu):
-=-=-=-=-=-=-=-=-=-=-=-=
| b |
b := RTMondrian new.
b shape circle
size: 8;
if: [ :c | '*Line*' match: c name ] fillColor: Color red.
b nodes: TRShape withAllSubclasses, RTShape withAllSubclasses.
b shape line.
b edges
connectFrom: #superclass.
b shape bezierLineFollowing: #superclass; color: (Color blue alpha: 0.2).
b edges
objects: TRShape withAllSubclasses, RTShape withAllSubclasses;
notUseInLayout;
connectToAll: #dependentClasses.
b layout tree.
b build.
“VVVVV important line VVVVVV"
b view addMenu: 'focus' callback: [ b view canvas focusOnCenterScaled. b view
signalUpdate ].
^ b
-=-=-=-=-=-=-=-=-=-=-=-= - How can I
get this kind of "logarithmic" scale a rule in the bottom of the view.
I
do not understand. What such a scale is supposed to do? - A sytle
question "labeledCircleSized: upLabel: downLabel: at:" seems descriptive to me,
but I don't know if has the proper style for a method name. I can read Smalltalk with
Style to look at it, now that I know more about the environment, but advice of seasoned
smalltalkers would help a lot in getting proper style also.
You may want to use a
factory object to configure its creation :-) Cheers,
Alexandre
Thanks as always,
Offray
4:14 a.m.
Hi,
On 11/06/15 18:53, Offray Vladimir Luna Cárdenas wrote:
[...]
Another possibility is not use this custom scale ruler and instead we
will use some kind of arcs, but I would like to test different
approaches to choose from. By the way testing the arcs approach (code
at [2] http://ws.stfx.eu/EGZ9ZYULOR0 and graphic 3) I start to wonder
if there is not a better way by having overlapping ellipsis with
transparent background and custom colored borders. Is this possible?
[...]
By the way this code paints a totally gray circle, not a transparent one
with a gray border:
~~~~~~
| weeksOrbit diameter v |
v := RTView new.
diameter := 55.
weeksOrbit := (RTEllipse new
size: diameter;
color: Color white;
borderColor: Color lightGray) element.
v add: weeksOrbit.
v.
~~~~~~
Cheers,
Offray
13 Jun
13 Jun
3:02 p.m.
Hi Offray,
Sorry about this bug. It has now been fixed.
Cheers,
Alexandre
On Jun 11, 2015, at 11:14 PM, Offray Vladimir Luna
Cárdenas <offray(a)riseup.net> wrote:
Hi,
On 11/06/15 18:53, Offray Vladimir Luna Cárdenas wrote:
[...]
--
_,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:
Alexandre Bergel http://www.bergel.eu
^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;._,.;:~^~:;.
Another possibility is not use this custom scale ruler and instead we will use some kind
of arcs, but I would like to test different approaches to choose from. By the way testing
the arcs approach (code at [2] http://ws.stfx.eu/EGZ9ZYULOR0 and graphic 3) I start to
wonder if there is not a better way by having overlapping ellipsis with transparent
background and custom colored borders. Is this possible?
[...]
By the way this code paints a totally gray circle, not a transparent one with a gray
border:
~~~~~~
| weeksOrbit diameter v |
v := RTView new.
diameter := 55.
weeksOrbit := (RTEllipse new
size: diameter;
color: Color white;
borderColor: Color lightGray) element.
v add: weeksOrbit.
v.
~~~~~~
Cheers,
Offray
_______________________________________________
Moose-dev mailing list
Moose-dev(a)iam.unibe.ch
https://www.iam.unibe.ch/mailman/listinfo/moose-dev
3479
days inactive
3506
days old
13 comments
3 participants
participants (3)
-
Alexandre Bergel -
Offray Vladimir Luna Cárdenas -
offray＠riseup.net
